Chrome plated Brass or Stainless steel. NOTE : Stainless steel only available 5mm diameter
Weight
7g / pc
Sales unit
4pcs/set only
No.2 : Standard type DARUMA
Applicable stay size (φ)
4mm or 5mm (Diameter)
Available Materials
Chrome plated Brass or Stainless steel. NOTE : Stainless steel only available 5mm diameter
Weight
7g / pc
Sales unit
4pcs/set only

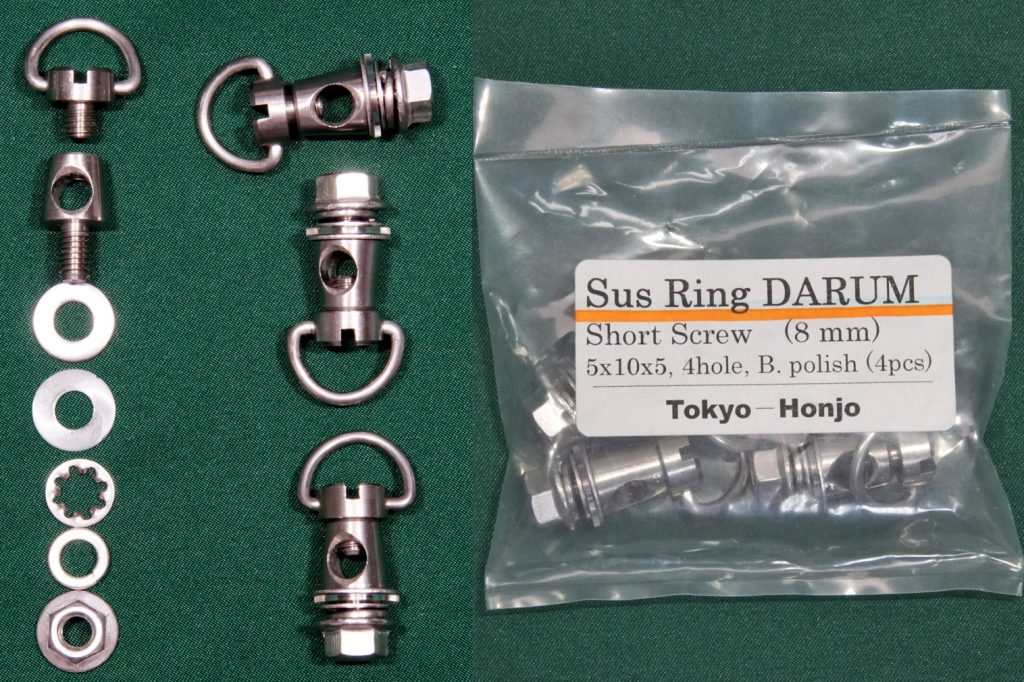

No.3 : U ring type DARUMA
Applicable stay size (φ)
5mm (Diameter)
Material
Stainless steel.
Weight
12g / pc
Sales unit
4pcs/set only
No.4 : R clamp band
Applicable stay size (φ)
4mm or 5mm or 6mm (Diameter) Shape may vary according size.
Material
Stainless steel.
Weight
6g / pc
Sales unit
4pcs/set only
Installation image
No.5 : Whittling type clamp
Applicable stay size (φ)
5mm or 6mm (Diameter)
Material
Aluminium Alloy
Finish
Anodized
Colours
Silver, Gold, Black
Weight
10g / pc
Sales unit
2pcs/set only
Installation image
カラーバリエーション
No.7 : Road end adaptor for mudguard stay clamp
Material
Stainless steel.
Weight
12g / pc
Sales unit
4pcs/set only
How to Use
It is used to fix the mudguard stay to bicycles without dowels (holes) for mounting the mudguard stay, such as road bikes. By passing it through the HUB shaft and tightening it together, it is possible to attach the mudguard stay.
Note
In the instruction manual attached to the product, we recommend that the stay be installed inside this metal fitting ("Front installation example" in the figure). In the case of a shape where clearance cannot be secured at the road-end, etc., it is possible to mount the stay on the outside of this metal fitting ("Rear mounting example" in the figure).
Installation image
Front mounting example
Rear installation example
No.8 : KANZASHI anchor hardware for fixing mudguard stay
Using No.9 KANZASHI DARUMA, attach the mudguard stay as shown in the lower left photo. Also front wheel is used in combination with "No.77: Pole stay", and the rear wheel is used in combination with "No.78 Matsuba stay".
Example of wearing
No.9 : KANZASHI DARUMA
size (φ)
3.2mm (Diameter)
Main Material
Chrome plated brass
Weight
4g / pc
Sales unit
8pcs/set only
Note
Only for ”No.77 : Pole stay” and “No.78 Matsuba stay”.
